Modular trench shoring systems

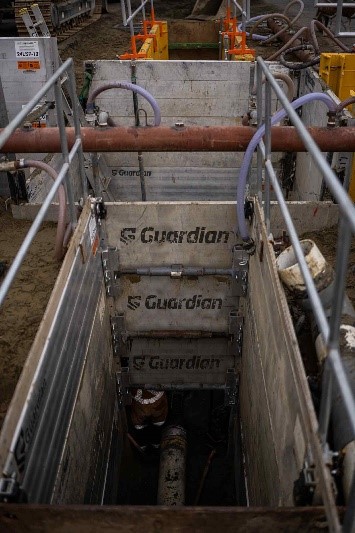

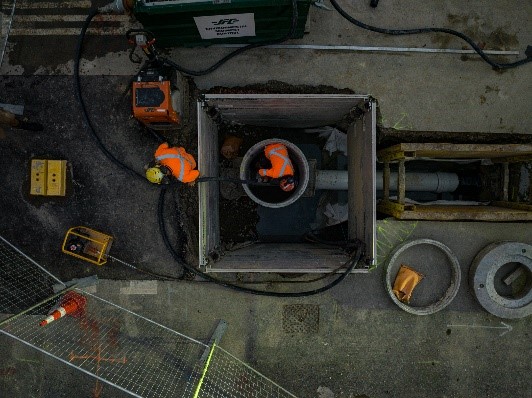

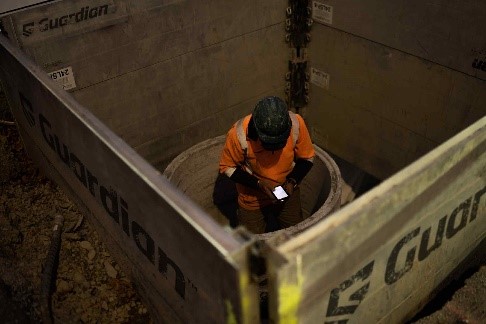

Aluminium modular shoring systems offering exceptional versatility. Configure as trench shields, 3-sided boxes, or complete closed boxes depending on excavation requirements. Ideal for working around services or creating custom configurations for irregular excavations.Protection in Action
Core features:
- Tongue and groove panels align for smooth one-piece appearance
- Lightweight panels for easy transport and handling (can fit on ute or small trailer)
- Quick assembly using gravity-activated pins (no R-clips needed)
- Wall thickness 50mm (minimises excavation, backfilling, and restoration costs)
- 600mm legs available to hold shield off ground for pipes/cables
- Adjustable struts accommodate varying trench widths
- Stackable to a maximum of 9m for the 1.5m modular panels and to 3m for the 3m modular panels.

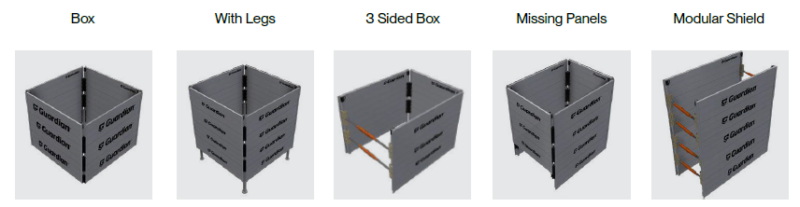

5 Examples of the many different Modular Shield Configurations
Our Range
| Product Code | Panel Length | Panel Height | Weight Per Panel | kPa Rating | Panel Thickness |
|---|---|---|---|---|---|
| 2411 | 1.5m | 600mm | 34kg | 74kPa | 50mm |
| 2412 | 1.8m | 600mm | 39kg | 57kPa | 50mm |
| 2413 | 2.4m | 600mm | 52kg | 44kPa | 50mm |
| 2414 | 3.0m | 600mm | 64kg | 26kPa | 50mm |
Applications
Complex excavations requiring custom configurations, working around multiple services, heavy-duty retaining walls, open pits, situations requiring 3 or 4-sided protection, sites needing minimal excavation width.Product Videos
- Learn how to make the guardian modular trench shields video
- How why you should inspect trench shields
Become a Trench Shield Expert
- Our Top 4 Large Trench Shields for 2026
- Aluminium Trench Shield Strength and Certifications!
- Our Aluminium Trench Shields VS Steel Trench Shields
- How & Why You Should Inspect Your Trench Shields
- Trench configuration – the right solutions keep people safe
- Modular Boxes vs Trench Shields: Which is Right for Your Job Site?
- What affects the cost of hiring a shield?
- Different Ways To Make Trenches Safe!
Customer Success Stories
Certified to International Standards

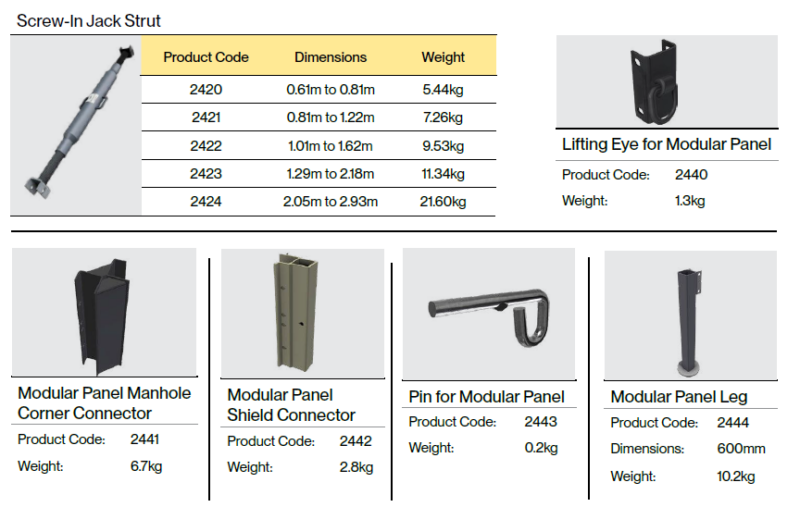

Designed and built to OSHA standard 29 CRF, Part 1926, Subpart P, Excavations. Independent engineering audit confirms these panels meets requirements for the AS 4744.1-2000 standard.Modular Trench Shoring System Accessories
Why choose Guardian trench shields?
Lightweight without compromise
Complete shield setup. Small excavators can lift and position shields using inbuilt lifting points. This cuts machinery costs and makes shields accessible for restricted sites.
Built for New Zealand conditions
Aluminium doesn’t rust. In wet, muddy trench work, that longevity matters. Our shields handle New Zealand’s diverse soil types — from sandy coastal ground to heavy clay — without the corrosion issues affecting steel alternatives.
Flexible for real work
Multiple strut points mean you’re not locked into one position when services are in the way. Detachable 600mm legs keep shields off the trench bottom when pipes or cables run underneath. Adjustable struts (0.6m-3.5m) accommodate different trench widths.
Fast to deploy and move
Shields can be assembled or dismantled in minutes. Move quickly around busy sites or transport between jobs without specialised equipment.
Compliance and certification
Every Guardian shield meets or exceeds at least one of the following standards:
- New Zealand: AS 4744.1-2000
- Australia: AS 4744.1-2000
- United States: OSHA Sub Part P
- Britain & Europe: BS EN 13331.1 and 13331.2
Each shield carries an identification plate showing standards compliance. Certifications and Safe Use Manuals provided to support Health & Safety requirements and WorkSafe inspections. Reference guides on every shield show safe strut positioning.
Technical support
We understand site pressures. Projects run tight, ground conditions change, and you’re responsible for getting people home safe. We provide:
- On-site product demonstrations
- Crew training on proper installation and use
- Technical compliance advice
- Documentation for WorkSafe requirements
- Custom sizing for non-standard requirements
What do you need?
Whether you’re looking for a specific solution or an ongoing safety partner, we’re ready to talk.
